CJX2 series AC Contactors have small size and very attractive appearance. They are mainly applied in alternating circuit( 50/60Hz frequency, maximum current is 95A when the voltage is 380V under AC-3 type), to close or break the circuit. It turns into an electromagnetic starter when it works together with a matching Thermal Relay, which can protect the overload circuit. Meanwhile, this device is very skilled at frequently starting and controling the AC generator

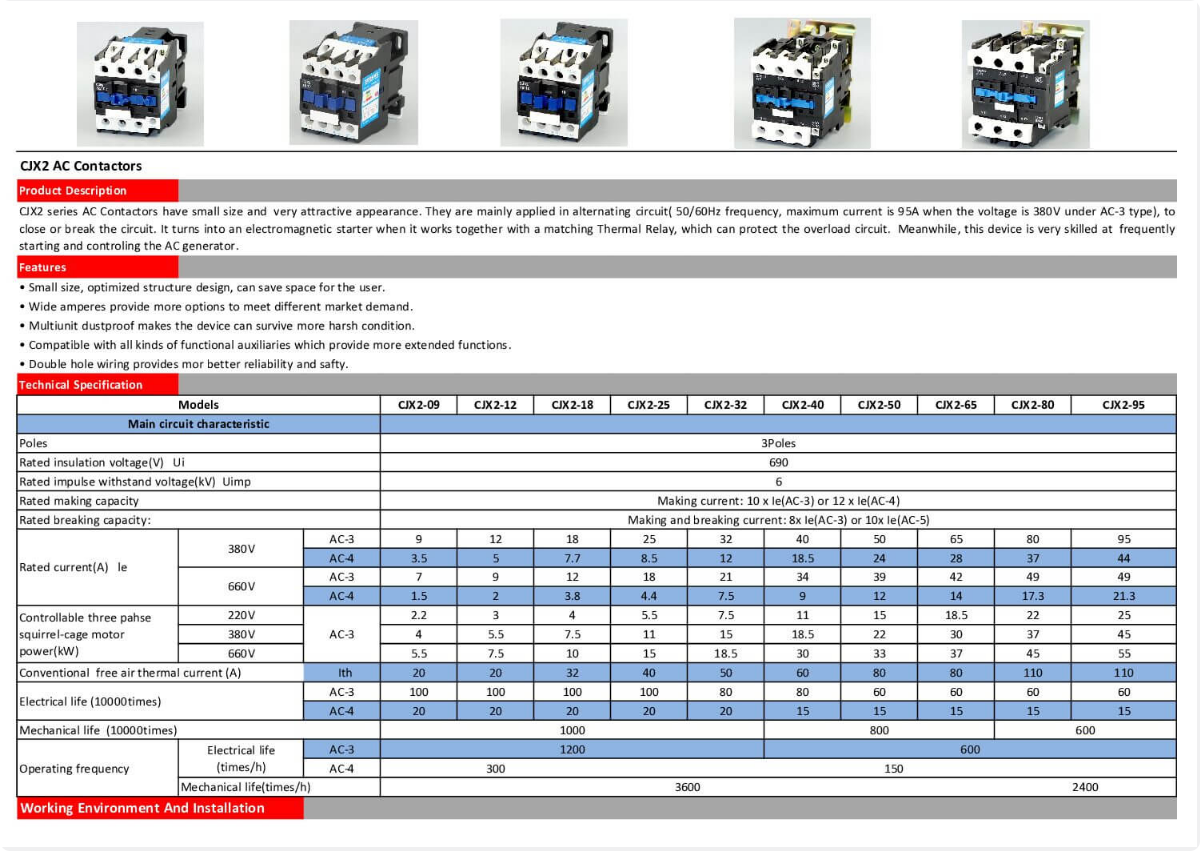

Technical Data Sheet
CJX2 series AC Contactors have small size and very attractive appearance. They are mainly applied in alternating circuit( 50/60Hz frequency, maximum current is 95A when the voltage is 380V under AC-3 type), to close or break the circuit. It turns into an electromagnetic starter when it works together with a matching Thermal Relay, which can protect the overload circuit. Meanwhile, this device is very skilled at frequently starting and controling the AC generator
| Product Name | AC Contactors | Ith | 20A-800A |
| Model No. | CJX2 Series | Electrical Life | 200000times-1million |
| Standards | IEC 60947-1-1,GB 14048-2 | Mechanical Lief | 1million-10million |
| Certifications | CE,CB, | Ambient Temperature | -5℃ ▬40℃ |
| Number of Poles | 3P | Maximum Humidity | 95% |
| Functions | start or control the motors | Altitude | 2000meters |
| Rated Currents | 9A-620A | Pollution Class | III Class |
| Rated Voltate | 380/660V | Installation Conditions | slope should below ±5° |
| Rated Insulation Voltage | 690V | Shock And Vibration | Installation site must be without shock and vibration |
| Breaking Capacity | 8x Ie(AC-3) | Installation Type | III class |
| Application Type | AC-3,AC-4 | Mounting Type | 35mm DIN-Rail |
