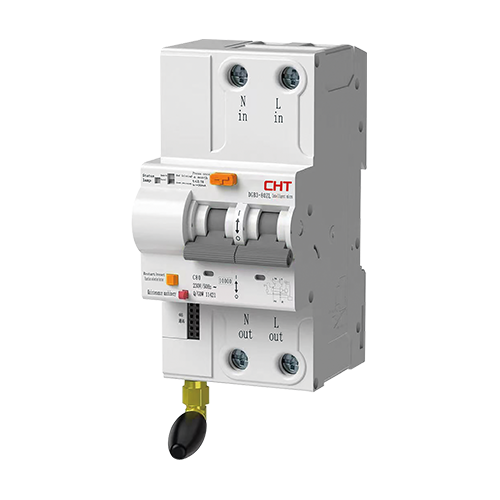

DGB3-80ZL

DGB3-80ZL series functional metering Residual current Operated Circuit- breaker is mainly used in AC 50Hz with rated working voltage 230V and with rated current up to 80A. In case of personal electric shock or when the grid leakage current exceeds the specified value, the residual current action circuit breaker can work to quickly cut off the power supply within the very short time for protection of the safety of personnel and electrical equipment as infrequent conversion of the line under the overload, short-circuit, overvoltage and normal situations, especially suitable for industrial and business lighting power distribution system.

  • Type designation
  • Product Information
  • Inquiry
  • Technical Data
  • Related Products
DG Enterprise code
B3 B: Circuit breaker 3: design code
80 Rated current (A)
Z Z:With automatic opening and closing functions and multi- function
L Leakage protection
4G Communication： 4G/Wi-Fi/ZG/Tuya /485
2P Pole：1P+N/ 2P/3P /3P+N/4P
DGB3-80ZL

Tripping Characteristic Curves

IEC60898-1

Product and installation dimensions(MM)

DGB3-80ZL should be installed on DIN rail terminal and can be connected to the wire less than 50mm2.

Order information

  • Please specify the product model and specification, and the type, rated current, number of poles, and order quantity of the instantaneous release when ordering.
  • Order example: DGB3-80ZL series, such as: DGB3-80ZL residual current operated circuit breaker
  • Trip type, such as: C type
  • Number of poles of product, such as 1P+N
  • Rated current, such as 32A
  • Rated residual operating current, such as: 30mA
  • type wave form of earth leakage sensed such as: A type
  • Communication：4G/Wi-Fi/ZG/Tuya/485
  • Order quantity, such as: 1000 units
  • Specified as: DGB3-80ZL C32 1P+N 30mA A type 4G 1000 units

Inquiry

    Technical Data

    Product name DGB3-80ZL
    Standards GB /T 10963.1、NB/T42149、IEC 60898-1
    Certificate CE, CCC, CB
    Main function






















    safety function

    		 remote control device switch on and off
    switch on and off on site
    safty lock — mechnesim lock force to switch off
    Over and undervotalge protection
    Phase loss protection
    over load and Short circuit protection function
    Three-phase imbalance alarm function
    Lightning surge protection function
    over temperature alarm function
    Leakage protection and self inspection function
    Metering function
    Arc fault detection function






    Data collection

    		 Voltage
    Current
    Temperature
    Leakage












    IoT interaction function

    		 current limiting function
    Energy Metering function
    Query electricity data function
    Safe operation data record query function
    Phone App
    Platform centralized management function
    Local edge computing function
    Product name DGB3-80ZL
    Standards GB /T 10963.1、NB/T42149、IEC 60898-1
    Certificate CE, CCC, CB
    Electrical characteristics
    Number of poles 1P+N，2P，3P，3P+N，4P
    Rated frequency (Hz) 50/60
    Frame current (A)                                        Inm 80
    Rated current (A)                                         In 6,10,16,20,25,32,40,50,63,80
    Rated voltage (V) AC230/400(1P+N/2P) ; AC400(3P,3P+N，4P)
    Rated insulation voltage (V)                      Ui 500
    Rated impulse withstand voltage (kV)     Uimp 4
    Rated short-circuit breaking capacity (kA)   Ics 6
    Rated short-circuit breaking capacity (kA)   Icn 6
    Instantaneous trip characteristics B,C,D
    Trip form Thermal, magnetic and Leakage trip
    Pollution level 2
    Rated residual action current (mA) 30/50/100/300
    Max. breaking time at the rated residual current 0.1s
    Wave form of earth leakage sensed AC / A
    Overvoltage protection: Uvo=280V±5% optional
    Mechanical properties
    Electrical life 10000
    Mechanical life 20000
    Protection grade IP20
    Indicator window Contact status indication and Leakage indication
    Normal operation conditions and installation characteristics
    Storage temperature -35℃ ~ +70℃
    Installation site altitude ≤ 2000m
    Terminals Fixed with screw
    Maximum wiring capacity 25mm2
    Maximum limit torque Nm 3.5
    Installation category Class Ⅱ , Ⅲ
    Installation method 35mm standard rail
    Incoming method Upper and lower
    Action performance of circuit breaker
    Rated current Start state Specified time Expected results Remarks
    6-80A Cold state 1.13 In t ≤ 1h Not trip
    Thermal Release 6-80A Hot state 1.45 In t < 1h Trip Immediately after a) test, the current increases to the specified value within 5s.
    6-80A

    Cold state



    2.55 In

    		 1s < t < 60s Trip
    6-80A 1s < t < 120s Trip




    Magnetic Release



    6-80A



    Cold state

    		 3In(B type)

    t ≤ 0.1s



    Not trip

    		 Turn on the auxiliary switch for making current
    5In (C type)
    10In(D type)


    6-80A



    Cold state

    		 5In(B type)

    t < 0.1s



    Trip

    		 Turn on the auxiliary switch for making current
    10In(C type)
    14In(D type)
    Wiring: Suitable for wire connection of 50mm2   The screws according to the tightening torque 3.5N·m
    Rated current (A) Nominal cross area of copper wire (mm²)
    6 1.5
    10 2.5
    16, 20 4
    25 6
    32 10
    40, 50 16
    63 25
    80 50
